A flow chart is a visual representation of a process or algorithm, using symbols to represent different steps or actions. It is commonly used in various fields such as programming, business, and engineering to illustrate the flow of information or tasks.
Flow charts typically consist of shapes connected by arrows, showing the sequence of steps in a process. Each shape represents a different action, decision, or input, making it easy to understand the flow of the process at a glance.
A Guide To Understanding Flow Charts
Benefits of Using Flow Charts
One of the main benefits of using flow charts is that they help to simplify complex processes and make them easier to understand. By breaking down a process into smaller steps and visualizing the flow, it becomes easier to identify bottlenecks, inefficiencies, or areas for improvement.
Flow charts also help to standardize processes and ensure consistency in how tasks are performed. They can be used as a tool for documentation, training, and communication, allowing team members to easily follow a process and understand their roles and responsibilities.
How to Create a Flow Chart
Creating a flow chart is a simple and straightforward process. Start by identifying the steps or actions involved in the process and determining the sequence in which they occur. Then, choose the appropriate symbols to represent each step, such as a rectangle for a process, a diamond for a decision, or an oval for a start or end point.
Next, draw the shapes and connect them with arrows to show the flow of the process. Use labels to indicate what each shape represents and add any necessary information or details. Finally, review and refine the flow chart to ensure it accurately reflects the process and is easy to understand for the intended audience.
By following these steps and understanding the basics of flow charts, you can effectively visualize and communicate complex processes in a clear and concise manner. Whether you are a programmer, business analyst, or project manager, flow charts can be a valuable tool for improving efficiency and effectiveness in your work.
Download A Guide To Understanding Flow Charts

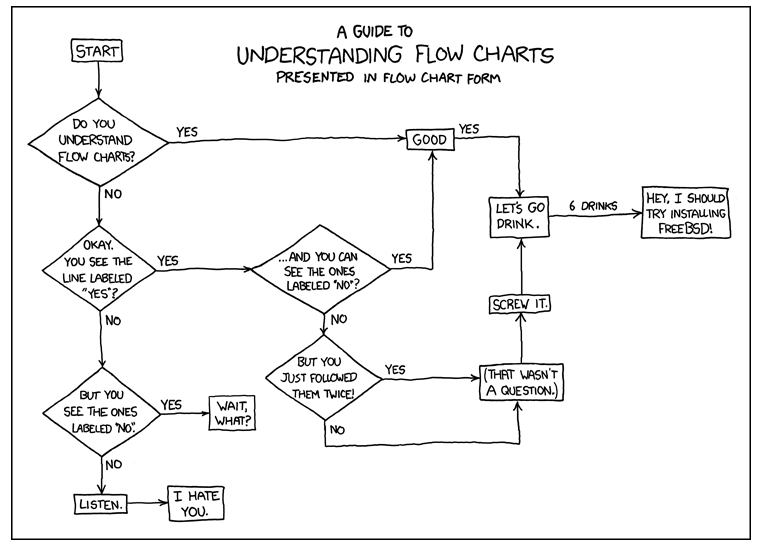

PAUL DERVAN A Guide To Understanding Flow Charts

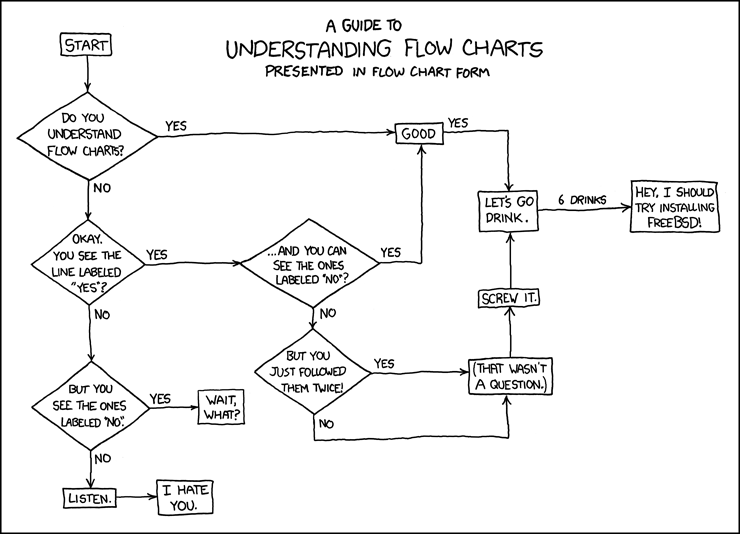

Flow Chart For Understanding Flow Charts

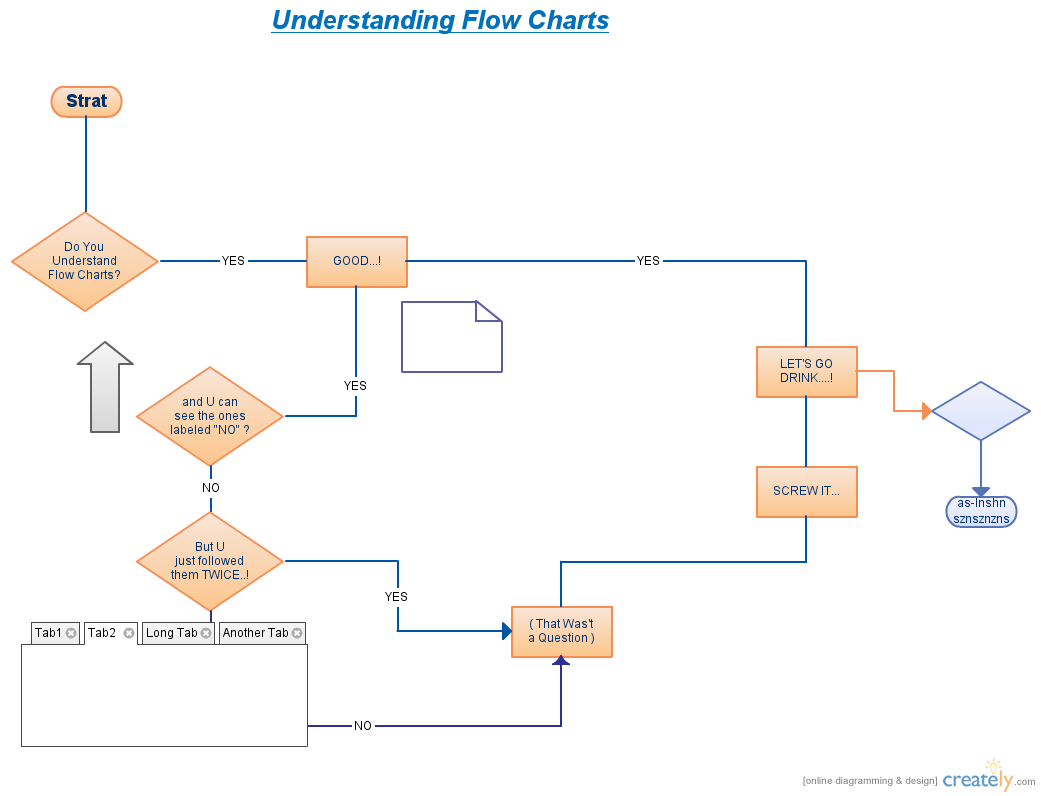

Understanding Flow Charts Computers Hub
