When it comes to staying cool during those hot summer months, your car’s air conditioning system plays a crucial role. The automotive A/C system operates on the principles of heat transfer and refrigeration. The system consists of several key components that work together to cool and dehumidify the air inside your vehicle.
The flow of refrigerant through the system is controlled by a series of components such as the compressor, condenser, expansion valve, and evaporator. The refrigerant circulates through these components, absorbing heat from inside the car and releasing it outside. This process results in cool air being blown into the cabin, providing relief from the sweltering heat.

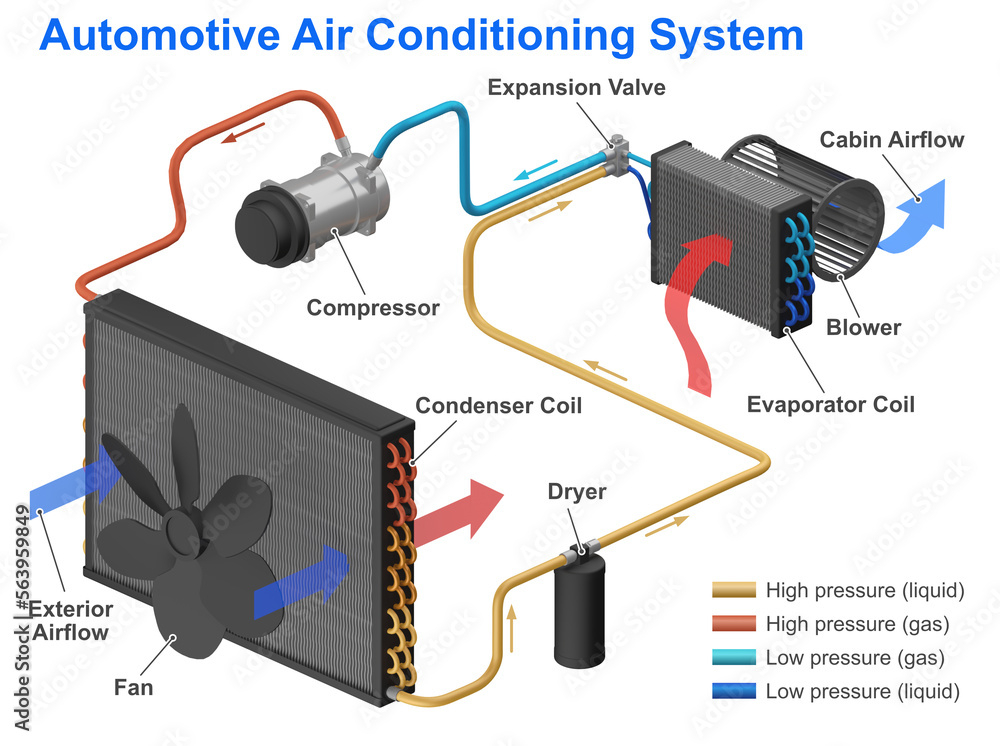

Automotive A/c System Flow Chart
Key Components of the Automotive A/C System Flow Chart
1. Compressor: The compressor is responsible for pressurizing the refrigerant and circulating it through the system. It compresses the low-pressure gas into a high-pressure gas, which increases its temperature.
2. Condenser: The condenser is located in front of the radiator and is responsible for releasing heat from the refrigerant. As the high-pressure gas flows through the condenser, it loses heat and condenses into a high-pressure liquid.
3. Expansion Valve: The expansion valve regulates the flow of refrigerant into the evaporator. It reduces the pressure of the refrigerant, allowing it to expand and cool down before entering the evaporator.
4. Evaporator: The evaporator is located inside the car’s dashboard and is responsible for absorbing heat from the air inside the cabin. As the cool liquid refrigerant flows through the evaporator coils, it absorbs heat and evaporates into a low-pressure gas.
By understanding the flow chart of the automotive A/C system and the function of each component, you can better maintain and troubleshoot any issues that may arise. Regular maintenance and servicing of your A/C system can ensure optimal performance and keep you comfortable on those scorching summer days.
Download Automotive A/c System Flow Chart

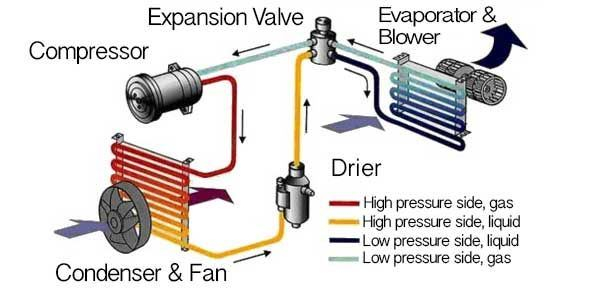

Air Conditioning Flow Diagram

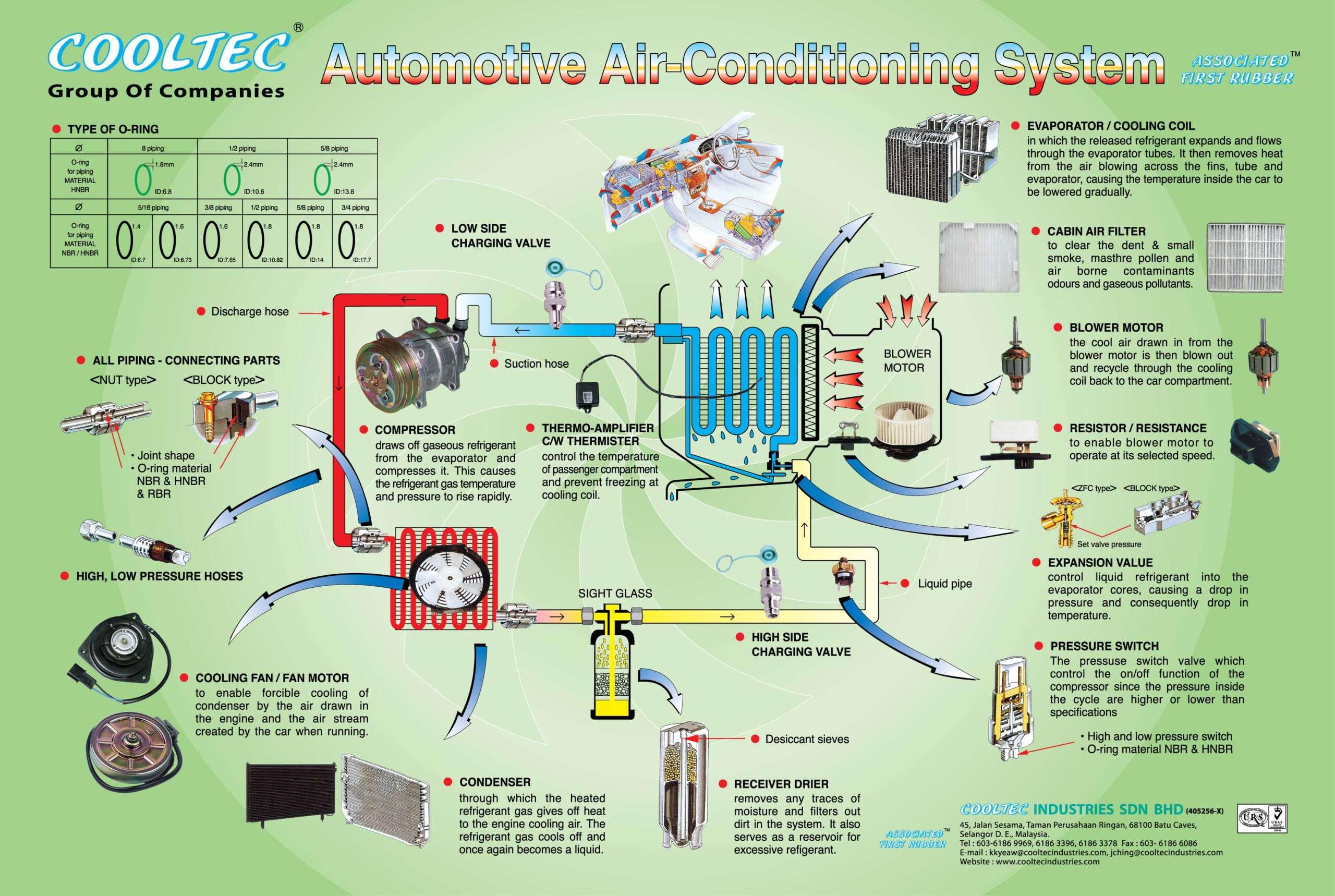

Automotive A c System Diagram
A c System Flow Chart
A c System Flow Chart
