Cooling System Flow Chart: A Complete Guide

Understanding Your Vehicle’s Cooling System

Your vehicle’s cooling system is crucial for maintaining the optimal operating temperature of the engine. It consists of various components such as the radiator, water pump, thermostat, and hoses that work together to regulate the engine’s temperature. Understanding how the cooling system functions can help you identify and address any issues that may arise.

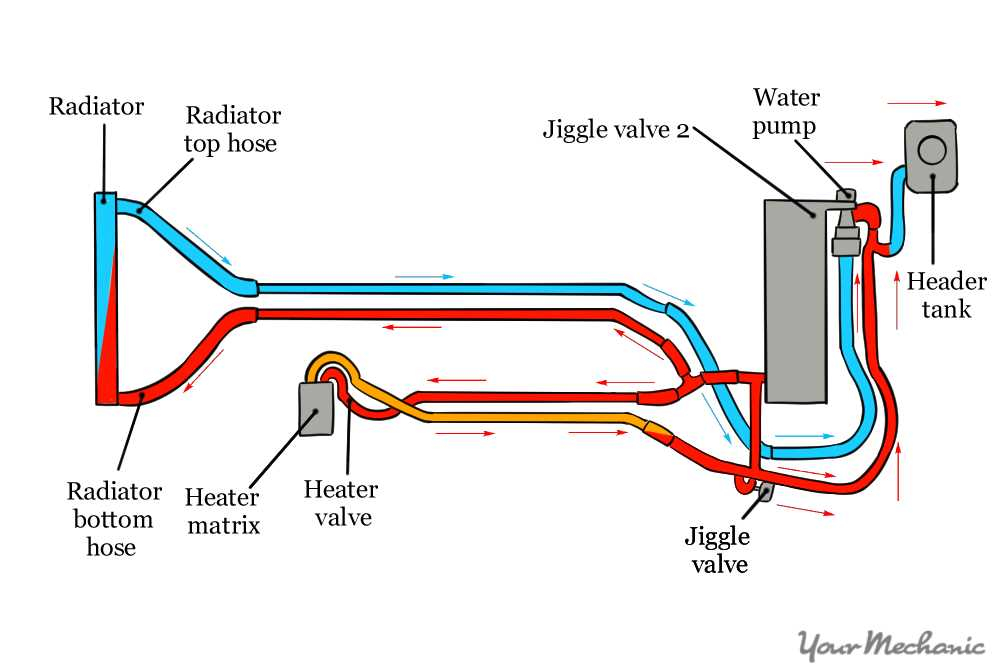

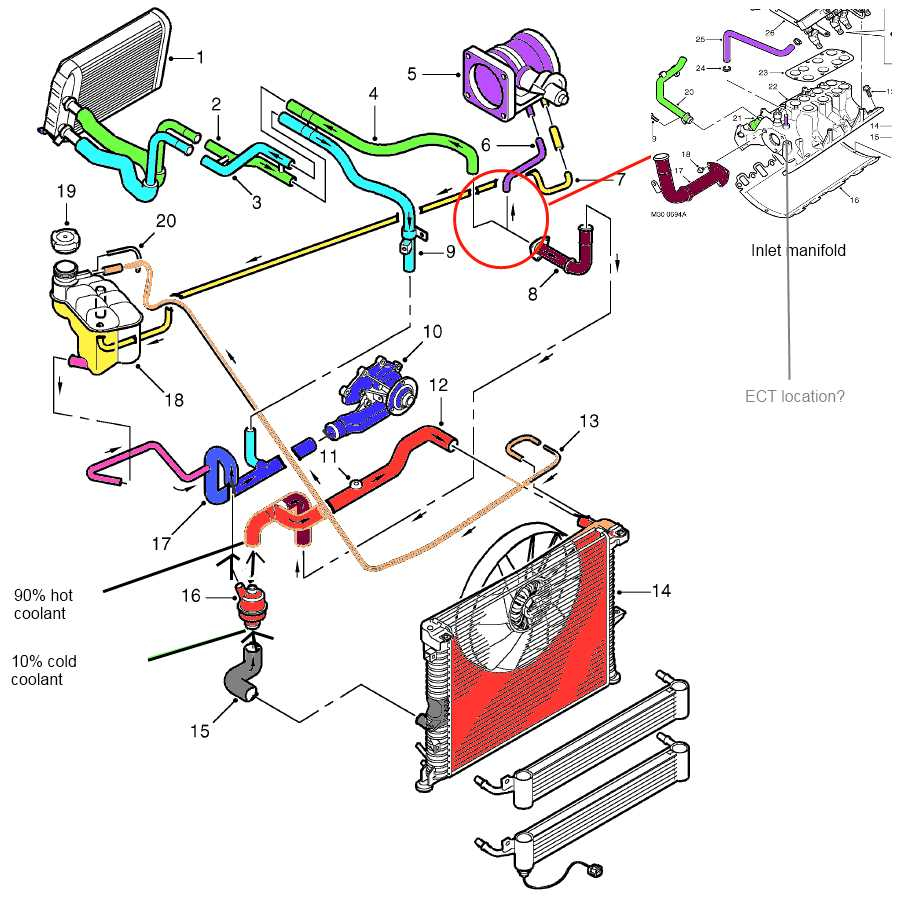

The cooling system flow chart provides a visual representation of how coolant flows through the system. It shows the path that coolant takes as it absorbs heat from the engine and releases it through the radiator. By following the flow chart, you can easily trace the route of the coolant and pinpoint any potential areas of concern.

Key Components of the Cooling System

1. Radiator: The radiator is responsible for dissipating heat from the coolant. As hot coolant flows through the radiator, it releases heat into the surrounding air, cooling down before returning to the engine.

2. Water Pump: The water pump circulates the coolant through the engine and radiator. It ensures a constant flow of coolant to prevent overheating and maintain the engine’s temperature within the optimal range.

Common Cooling System Issues

1. Overheating: One of the most common cooling system issues is overheating, which can be caused by a malfunctioning thermostat, low coolant levels, or a faulty water pump. If your vehicle is overheating, it’s essential to address the issue promptly to prevent engine damage.

2. Leaks: Coolant leaks can occur due to damaged hoses, a cracked radiator, or a faulty water pump. It’s crucial to inspect the cooling system regularly for any signs of leaks and repair them promptly to prevent coolant loss and overheating.

In conclusion, understanding the cooling system flow chart and key components of the cooling system is essential for maintaining your vehicle’s optimal performance. By being proactive in identifying and addressing cooling system issues, you can ensure that your engine operates efficiently and prolong its lifespan. If you encounter any problems with your cooling system, consult a professional mechanic for assistance.
