When it comes to maximizing engine performance, cylinder head flow plays a crucial role. The cylinder head flow chart is a visual representation of how efficiently air and fuel move through the cylinder head. This flow chart provides valuable information on the intake and exhaust flow rates, port velocities, and overall airflow characteristics of the cylinder head.
By analyzing the cylinder head flow chart, engine builders and tuners can determine the potential airflow restrictions and identify areas for improvement. Improving cylinder head flow can lead to increased horsepower, torque, and overall engine efficiency.

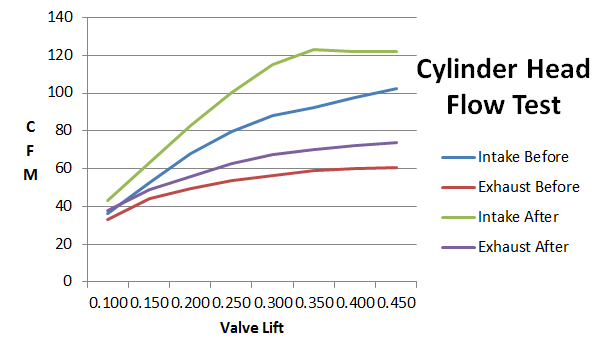

Cylinder Head Flow Chart
How to Read a Cylinder Head Flow Chart
Reading a cylinder head flow chart may seem daunting at first, but with some basic understanding, it can provide valuable insights into engine performance. The flow chart typically consists of flow rates measured in cubic feet per minute (CFM) at different valve lifts. The higher the CFM value, the better the airflow through the cylinder head.
Engine builders use cylinder head flow charts to compare different cylinder head designs, port sizes, and valve configurations to determine which combination offers the best airflow characteristics. By optimizing cylinder head flow, engine builders can achieve higher horsepower and torque numbers, making it a crucial aspect of engine tuning.
Optimizing Cylinder Head Flow for Maximum Performance
To optimize cylinder head flow, engine builders can make various modifications such as porting and polishing, valve upgrades, and combustion chamber reshaping. By carefully studying the cylinder head flow chart and making targeted modifications, engine builders can significantly improve engine performance.
It is essential to note that optimizing cylinder head flow should be done in conjunction with other engine modifications to achieve the best results. Working with a knowledgeable engine builder or tuner can help ensure that the cylinder head flow is optimized for maximum performance.
By understanding the cylinder head flow chart and how to read it, engine enthusiasts can unlock the full potential of their engines and achieve impressive performance gains. Investing time and effort into optimizing cylinder head flow can make a significant difference in overall engine performance and driving experience.
Download Cylinder Head Flow Chart

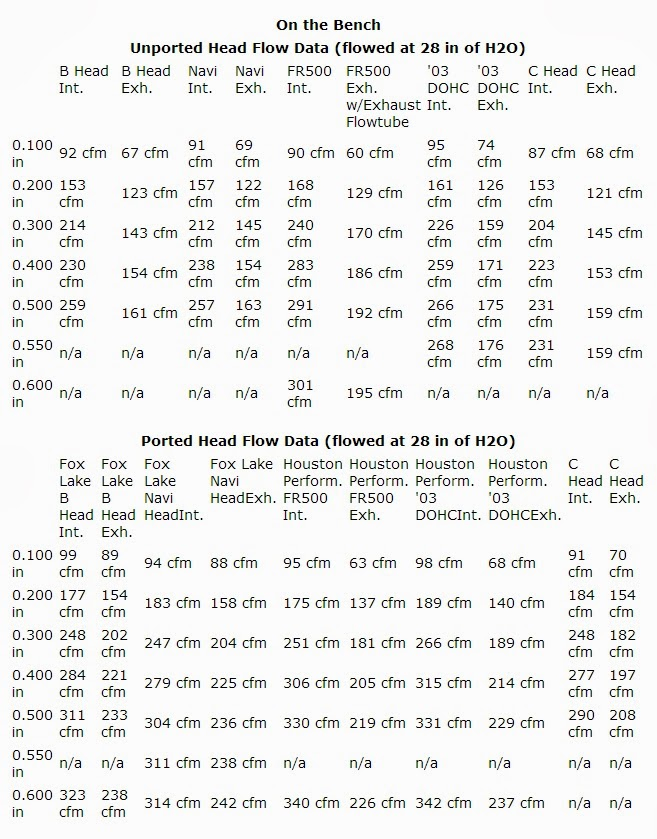

Pontiac Head Flow Chart

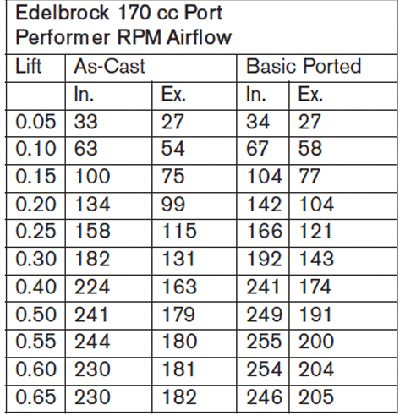

Sbc Cylinder Head Flow Chart

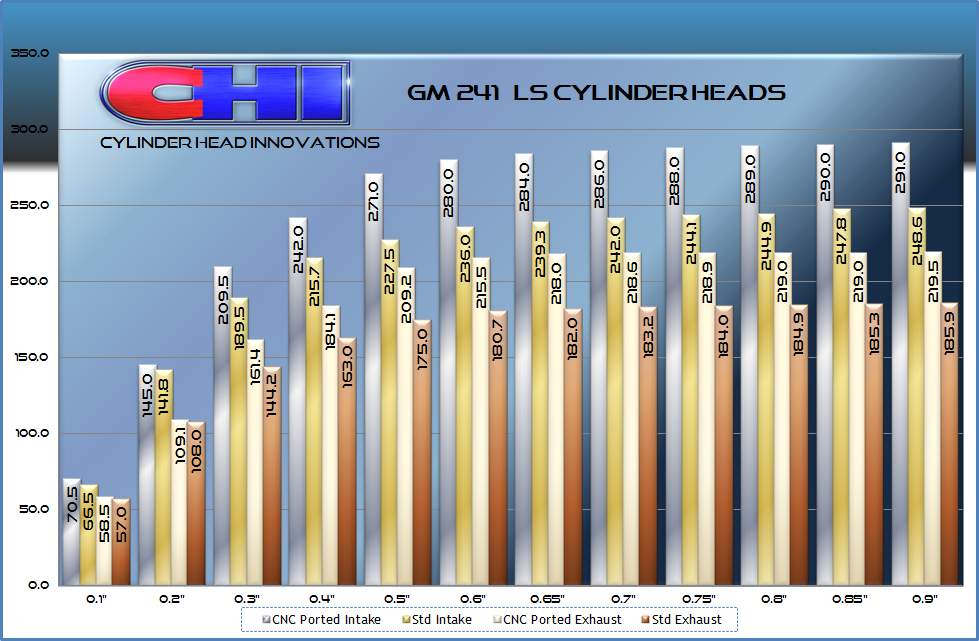

Sbc Cylinder Head Flow Chart

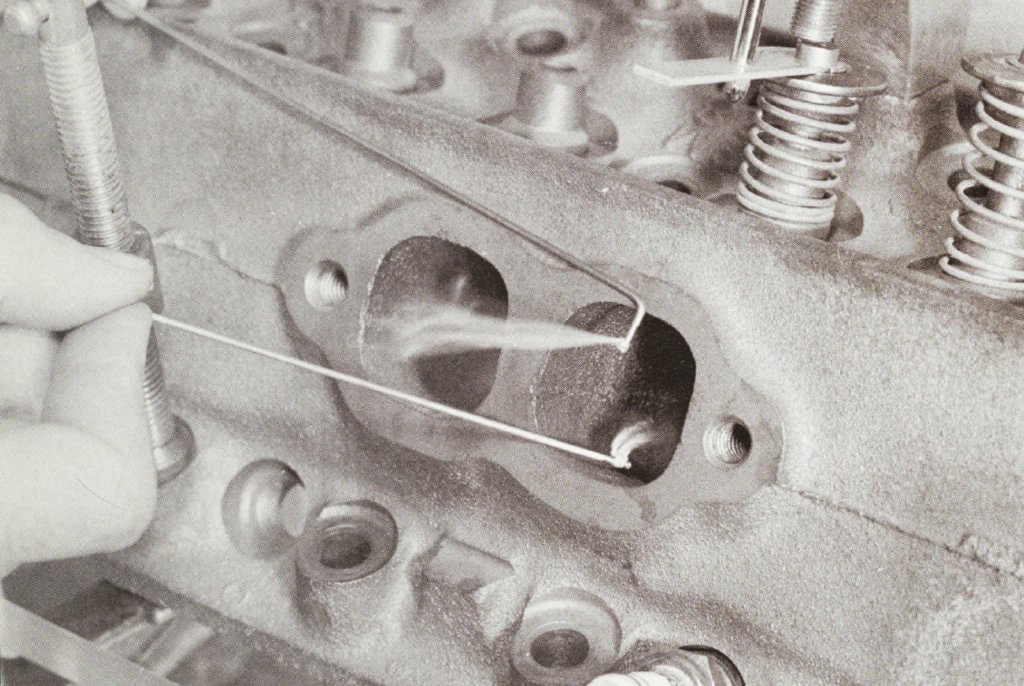

Making Sense Of Cylinder Head Flow Testing
