Flow Chart For Water Treatment

Water treatment is a crucial process that ensures safe and clean drinking water for communities. The process involves removing contaminants and impurities from water to make it suitable for consumption. A flow chart for water treatment outlines the various steps involved in treating water to meet regulatory standards and ensure public health.

The primary goal of water treatment is to remove harmful substances such as bacteria, viruses, chemicals, and other pollutants that may be present in the water supply. By following a structured flow chart, water treatment plants can effectively treat water and provide clean drinking water to the public.

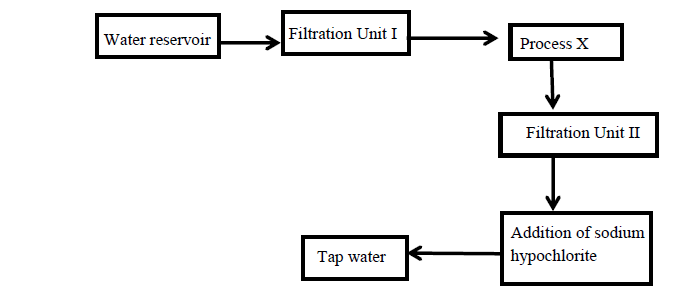

Flow Chart For Water Treatment

Key Steps in a Water Treatment Flow Chart

1. Coagulation and Flocculation: The first step in the water treatment process involves adding chemicals such as alum to the water to create flocs. These flocs attract impurities and particles, allowing them to settle at the bottom of the treatment tank.

2. Sedimentation: Once the flocs have formed, the water is allowed to sit in a sedimentation tank. During this process, the flocs settle to the bottom of the tank, separating them from the clear water above.

3. Filtration: After sedimentation, the water passes through filters to remove any remaining particles and impurities. This step helps ensure that the water is free from contaminants before moving on to the next stage of treatment.

4. Disinfection: The final step in the water treatment process involves disinfecting the water to kill any remaining bacteria and viruses. Common methods of disinfection include chlorination, ozonation, and UV treatment.

By following a flow chart for water treatment, treatment plants can effectively remove contaminants and produce clean, safe drinking water for the public. This structured approach ensures that water meets regulatory standards and is free from harmful substances, protecting public health and the environment.

Overall, a flow chart for water treatment provides a visual representation of the steps involved in treating water and ensures that each stage is carried out effectively to produce clean and safe drinking water for communities.
